Overview

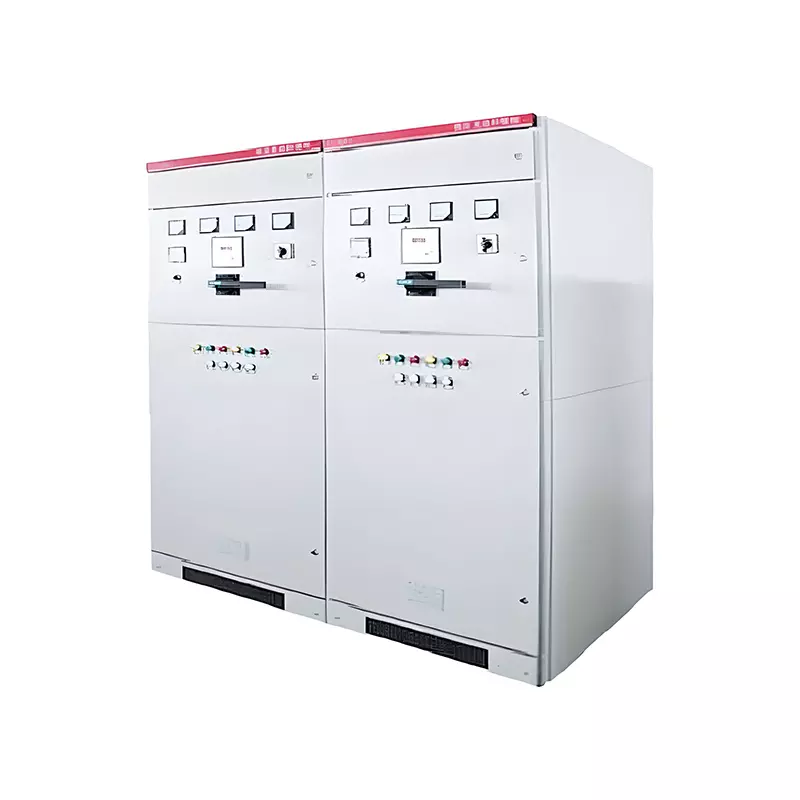

The GG] type low-voltage distribution reactive power compensation integrated cabinet is a new type of outdoor distribution reactive power compensation integrated cabinet designed based on the principles of safety, economy, rationality and reliability. This new type of outdoor comprehensive distribution box is suitable for urban and rural power grid renovation, industrial and mining enterprises, street lighting, residential communities and other AC 50Hz, rated voltage 380V distribution systems. It has multiple functions such as power distribution, control, protection, reactive power compensation and power metering. At the same time, leakage protection function can be added according to the user's requirements. The product features a novel and reasonable structure, a high protection level, and is convenient for installation, debugging, maintenance and repair. The product complies with GB7251.1-1997 and GB/T15576-2008, and has passed the 3C certification. It is an ideal low-voltage complete set of equipment in the current power grid transformation.

The GG] series outdoor distribution reactive power compensation integrated cabinet is suitable for the distribution, metering, protection and automatic reactive power compensation of 0.4kv voltage level electric energy.

Product Features

The CG] series low-voltage reactive power compensation cabinet is composed of the cabinet body, disconnector, fuse, switching capacitor contactor, thermal overload relay, power capacitor and intelligent reactive power compensation controller, etc. The cabinet body is of a closed structure.

Main performance

The response is prompt and rapid, the compensation effect is good, and the operation is reliable. A leakage protection device can also be added according to the user's requirements.

2. Protection functions: overvoltage, overload, undervoltage, undercurrent, short circuit and other functions;

3. Operating modes: It has two working modes, namely automatic operation and manual operation.

4. It can increase the number of power clusters in the power grid to over 0.95

Operating conditions

Ambient temperature :-20 ° C to +50 ° C

2. Relative humidity of air :<90%(relative ambient temperature: 20 ° C to 25 ° C)

3. Altitude: No more than 2,500 meters

4. Environmental conditions: It is suitable for indoor installation (inside a box), but not for places with fire or explosion hazards, severe pollution, chemical corrosion or intense vibration

5. Installation position: The vertical inclination to the ground shall not exceed 5C

Technical parameters

1. Operating voltage :380V

2. Rated frequency :50HZ

3. Compensation method: A combination of three-phase compensation and single-phase compensation

4. Compensation capacity :420kvar to 60kvar

5. Compensation methods: Cyclic switching, coded switching, fuzzy control automatic switching \ n6. Controlled physical quantities: Reactive power or reactive current

7. Fastest response time :20ms
