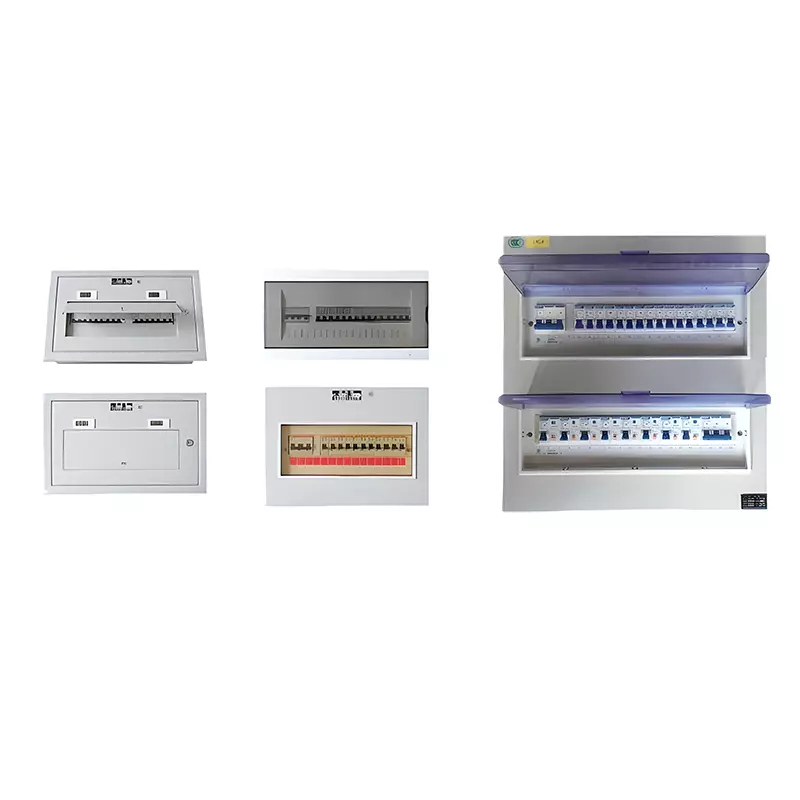

PZ30 modular temminal combination electrical appliance

MOQ: 1 Pieces

Delivery time: 15 Day

The main structural components of the PZ30 terminal combined electrical apparatus include the transparent cover, upper cover, box body, installation rail, conductive bar, wiring socket, protective cover and electrical switch elements, all of which are 9mm wide modular electrical appliances. They are installed on the top cap shaped track and can be combined arbitrarily as needed. Disassembly and assembly are quick and convenient. The handle of the switch element is exposed.

The live parts and other components are covered inside the upper cover. The door can be opened for convenient operation, and it is safe and reliable to use. The box is equipped with wire inlet and outlet holes on the top, bottom, left, right and back, which is convenient for wiring. The box body is of iron shell structure and can be used for both exposed installation and concealed installation.

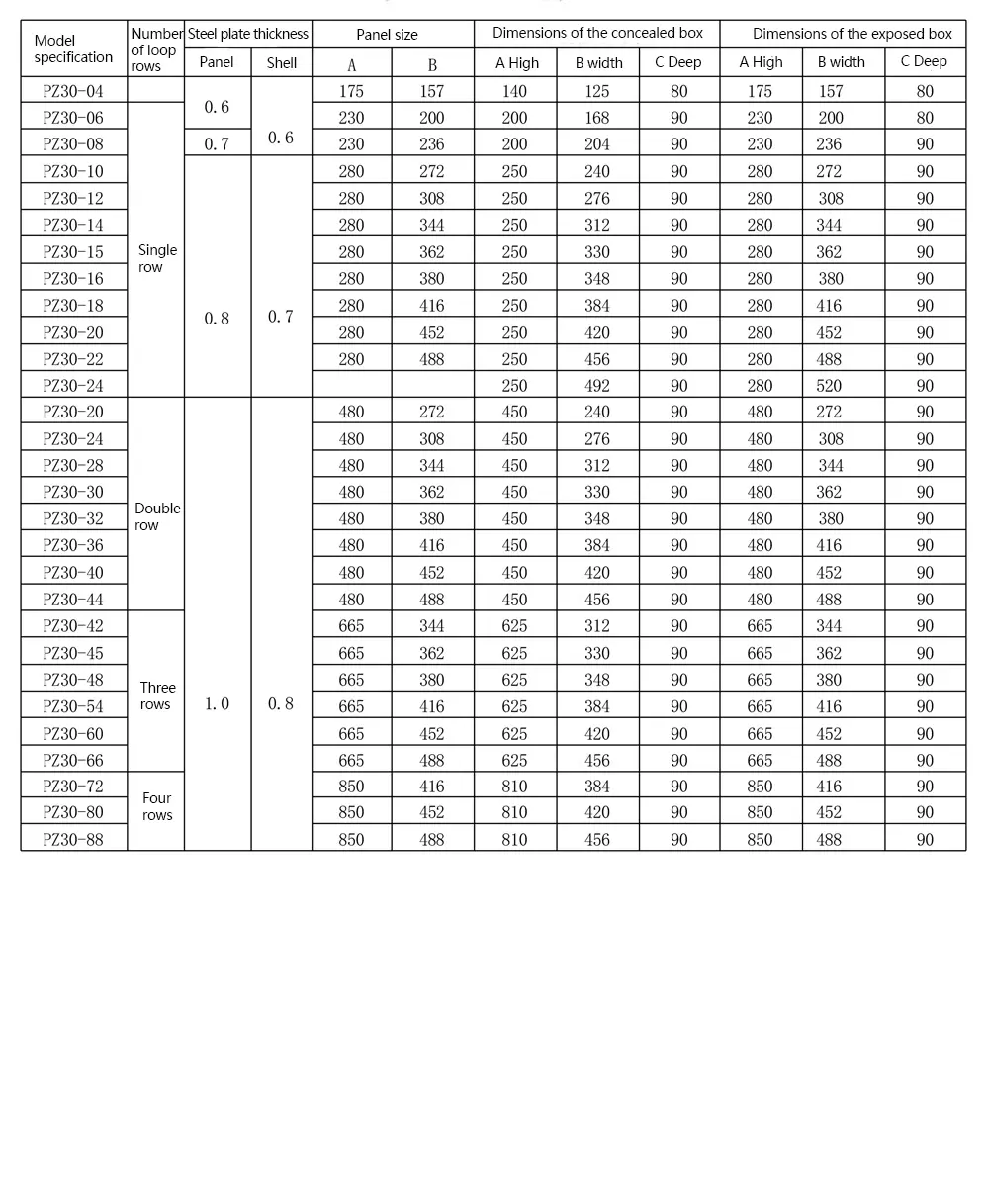

Product Details

The PZ30 terminal combined electrical apparatus is suitable for single-phase three-wire or three-phase five-wire terminal circuits with a rated voltage of 220V or 380V and a total load current not exceeding 100A. It is a complete set of equipment used to control electrical equipment and provide protection against overload, short circuit, overvoltage and leakage. It can be widely applied to high-rise buildings, residences, bus stations, ports, airports, hospitals, cinemas, large commercial outlets and industrial and mining enterprises, etc.
